Download 5 meter grid:
Substrate, Slope, Rugosity,BPI Structures, BPI Zones
Click here for a Discussionof Geomorphological Layers
Zipped data files contain 1) Arc ASCII file, 2) layer (.lyr)file for symbology, 3) high-res JPG of image, and 4) explanatory metadata text file (identical to linked file listed below).
Substrate, Hard bottom vs. Soft bottom – 5 meter grid

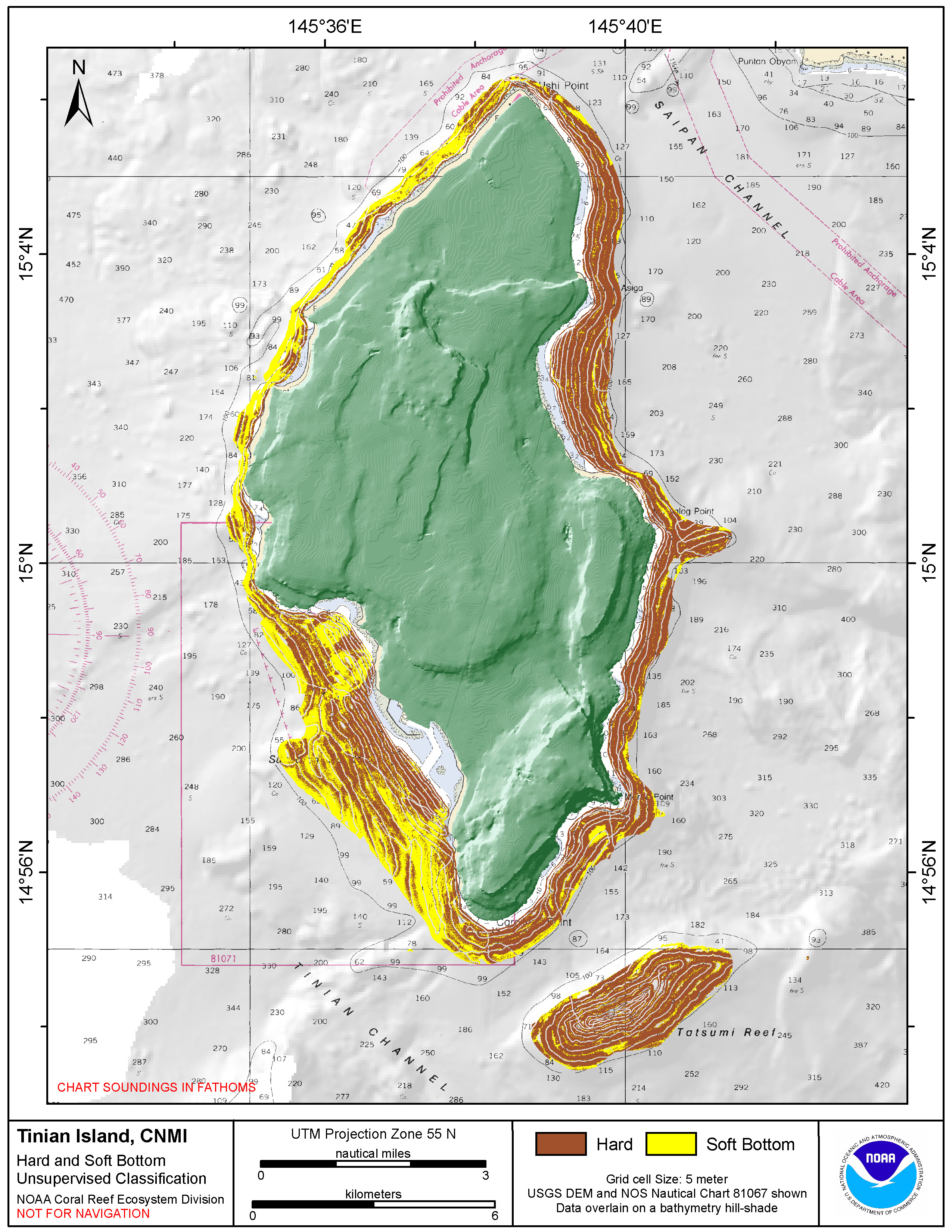

Substrate :This is a preliminary product derived from an unsupervised classification of multibeam bathymetric data derivatives and multibeam backscatter data. Cell values reflect whether the seafloor is hard or soft. Please see the metadata for additional information.
This map includes both the Simrad em3002d and Reson 8101 substrate data sets.
Download this image as a high-res JPG or PDF
Hard vs. Soft substrate classification data files
GeoTIFFs derived separately from Simrad em3002d and Reson 8101 backscatter:
- Arc ASCII: Metadata text • Zipped data
Slope – 5 meter grid
Slope: Cell values reflect the maximum rate of change (in degrees) in elevation between neighboring cells. Slope was derived with the ArcGIS Spatial Analyst extension.
Download this image as a high-res JPG or PDF
Slope data files
- Arc ASCII: Metadata text • Zipped data
Rugosity – 5 meter grid
Rugosity: Cell values reflect the surface area and (surface area) / (planimetric area) ratio for the area contained within that cell’s boundaries. They provide indices of topographic roughness and convolutedness. (Jenness 2003)
Download this image as a high-res JPG or PDF
Rugosity data files
- Arc ASCII: Metadata text • Zipped data
BPI Structures – 5 meter grid

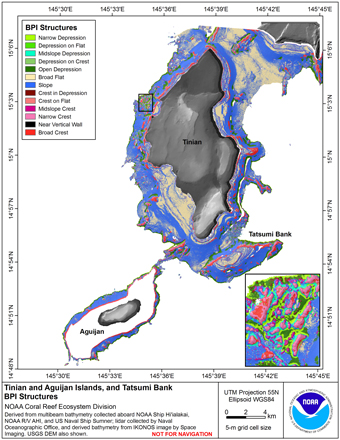

BPI Structures: Derived from two scales (20 & 250) of BPI; slope; and depth. Three ranges of slope defined flats, slopes and near vertical: x < 5; 5 < x < 70. Depth alone, in this case, is added only to separate flat structures into shelf (<30m) and broad flat (>30 m) environments (depths based on SCUBA limits).
|
|
|
A visual description of BPI Structure classes (Click image for larger view.) or here for PDF |
Download this image as a high-res JPG or PDF
BPI Structures data files
- Arc ASCII: Metadata text • Zipped data
BPI Zones – 5 meter grid
BPI Zones: Derived from a broad scale (250) BPI grid and slope. Two ranges of slope defined flats and slopes: x < 5 and 5 < x < 70.
Download this image as a high-res JPG or PDF
BPI Zones data files
- Arc ASCII: Metadata text • Zipped data
