SUB-7d: IJN I-401 (hangar bay)

Composite: I-401 hangerComposite: I-401 hangerSurvey: I-401 hangerSurvey: I-401 hangerSurvey: I-401 hangerSurvey: I-401 hangerSurvey: I-401 hangerSurvey: I-401 hangerHistoric photo: I-401 hangerHistoric photo: I-401 hangerHistoric photo: I-401 hangerHistoric photo: I-401 hangerPilot sketch: I-400 hanger paintingHistoric photo: I-400 class at seaHistoric photo: I-400 class snorkeling intake and exhaustHistoric photo: I-400 aircraft launchHistoric photo: I-401 at pierHistoric photo: I-400 officersDiagram: I-400 classHistoric photo: Aichi M6A1 SeiranHistoric photo: Aichi M6A1 SeiranDiagram: Aichi M6A1 SeiranHistoric photo: Aichi M6A1 Seiran


HURL Artifact No. SUB-7d *Denotes approximations and speculations
Name: I-401 (Aircraft Hangar) Lost: 31-May-1946
Artifact Type: Submarine Hangar Bay Found: 18-Feb-2009
Nationality: Japanese Dive No: PIV-211
Class or Make: I-400 Location: Barber's Pt.
Model: Sen Toku Depth (m): 836m
Purpose: Aircraft stowage & launch HURL crew: Kerby, Van Tilberg, Dittmer
Serial Number: n/a Additional Dives:
Built/Launched: 3/11/1944; Sasebo Naval Yard, Japan
Length: 115'
Width: 11'
Height: 11'
Circumstance of Loss: Sunk as target by torpedo (By USS Cabezon SS-334) Crew Personnel/Position: n/a
Reason of Loss: Test Mk 18 torpedo exploder *Prevent foreign intelligence gathering Crew Survivals/Fatalities: n/a
Artifact History: The hangar bay was a separate housing from the main body. It could hold 3 Aichi M6A1 Seiran aircraft. The wings on these planes could fold over and back to enable them to slide in and out of the tunnel on a track which connected to a catapult for launching. The first plane could be launched in about 7 mins and all three could be armed in the air in about 45 mins.

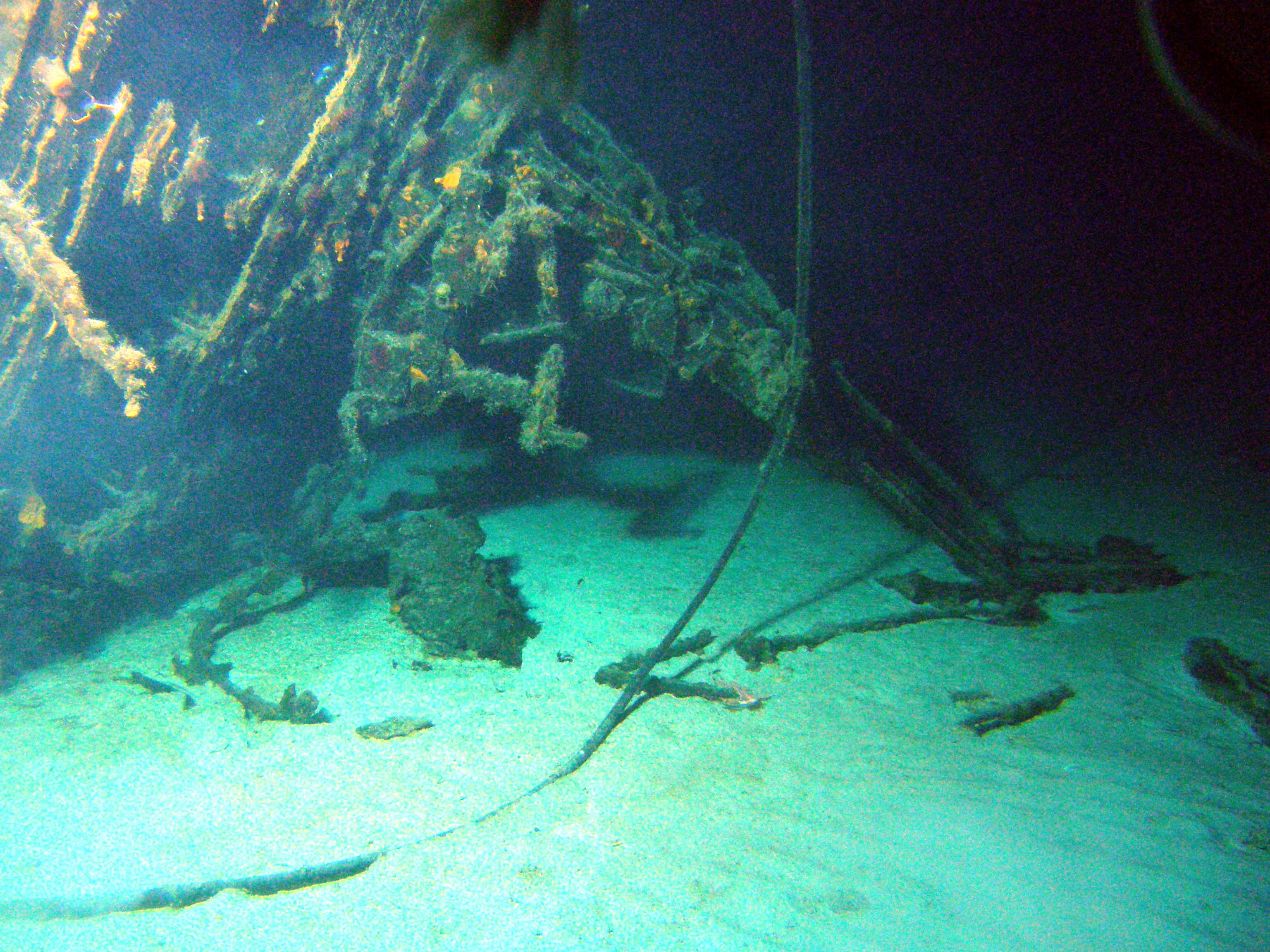

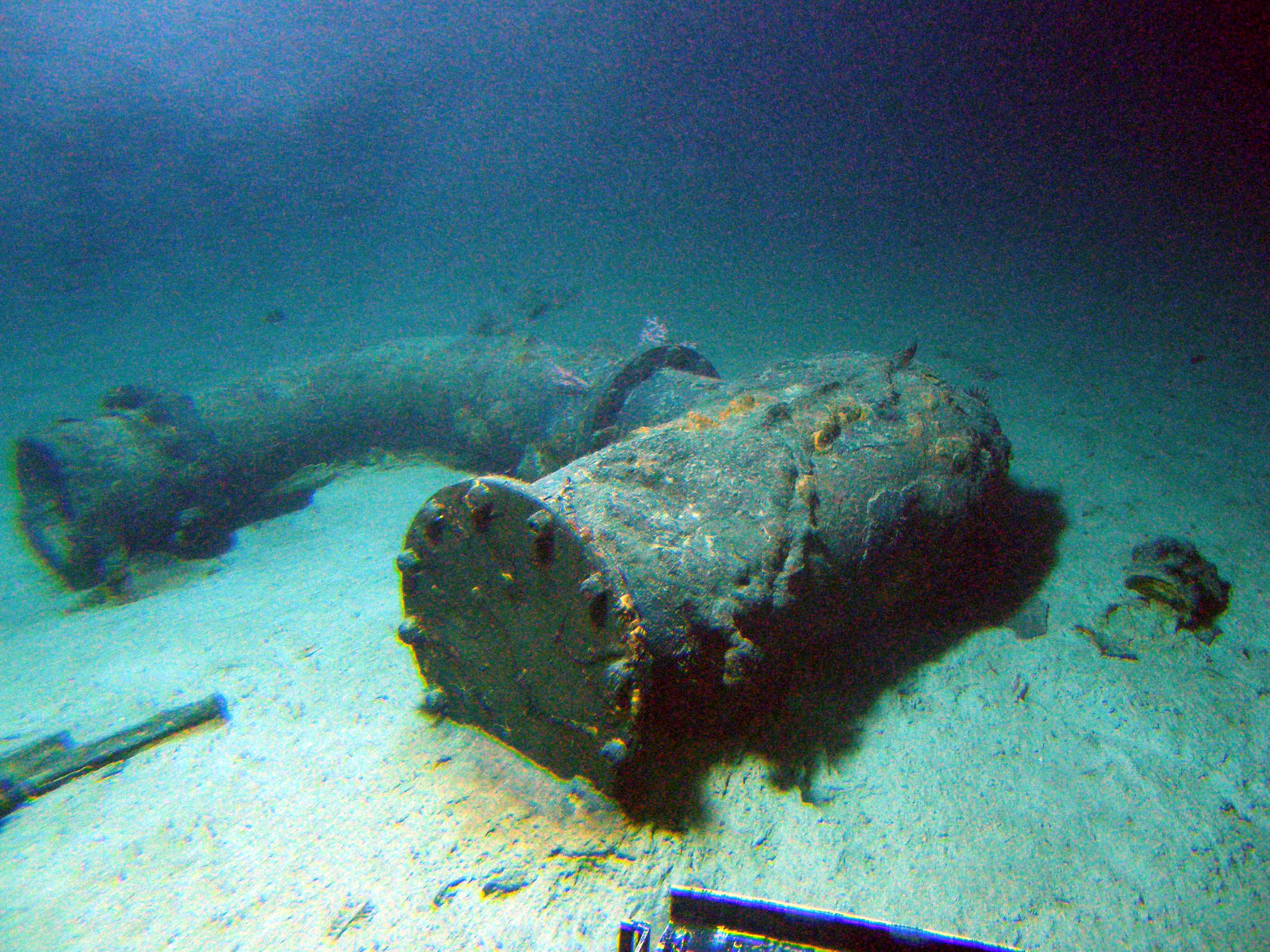

Artifact Condition: The hangar bay peeled away from the submarine during sinking. It landed face down on it's door end and broke in half with about 40' still sticking up from the seabed. The remainder lay among the debris field.

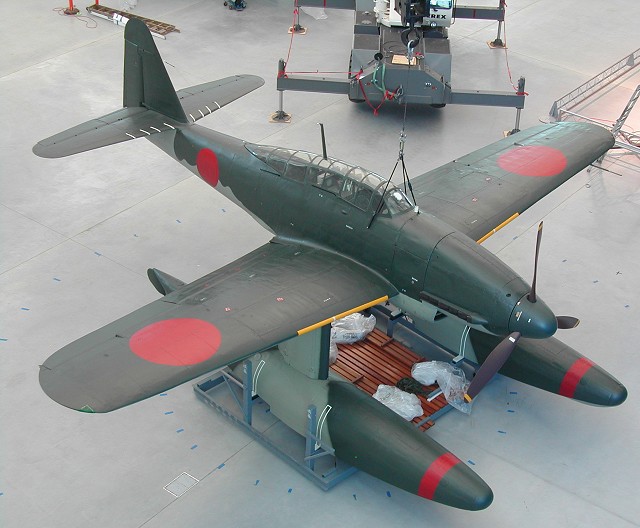

Additional Information: When the I-401 received word from Japan to cease hostilities they launched their aircraft into the ocean. They had been painted with American markings for their attack on Ulithi. The Seiran aircraft were built specifically for use on submarines. They could be fixed with pontoons for recovering a returning plane or without pontoons and with an increased bomb load for a one way attack. There were only 28 of these unique aircraft built of which only one has survived. They had a top speed of 295 mph and could travel 642 nautical miles. The Japanese also had several submarines that could launch a single aircraft.
