SBB-14: Navy Lighterage

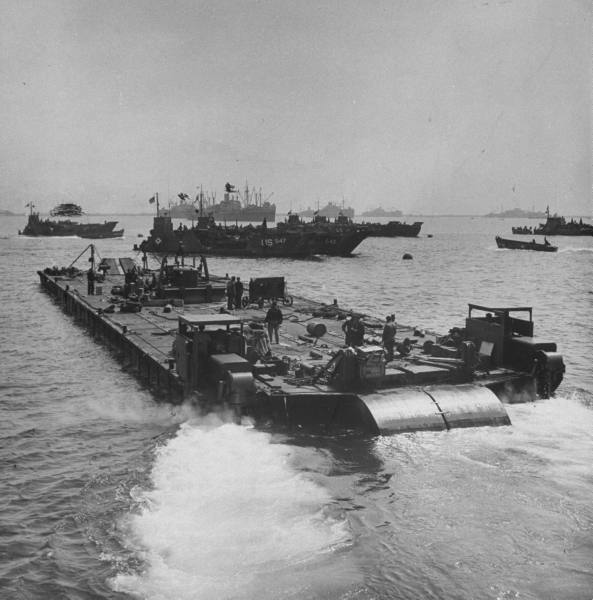

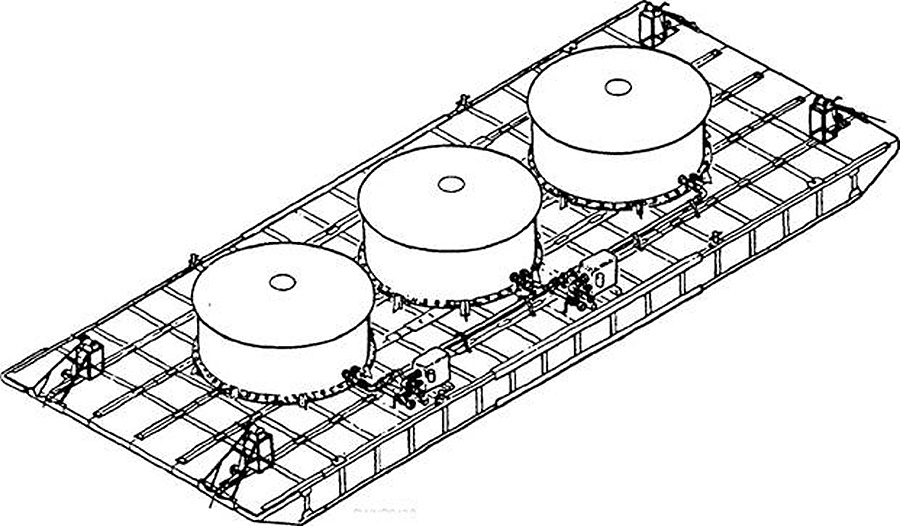

Composite: Navy LighterageSurvey: Navy LighterageSurvey: Navy LighterageSurvey: Navy LighterageSurvey: Navy LighterageSurvey: Navy LighterageSurvey: Navy LighterageSurvey: Navy LighterageSurvey: Navy LighterageSurvey: Navy LighterageSurvey: Navy LighterageSurvey: Navy LighterageSurvey: Navy LighterageSurvey: Navy LighterageSurvey: Navy LighterageSurvey: Navy LighterageSurvey: Navy LighterageSurvey: Navy LighterageHistoric photo: Navy Lighterage with propulsionHistoric photo: Pontoon storageHistoric photo: P-1 type pontoonHistoric photo: Pontoon ferry and LSTDiagram: Pontoon BargeDiagram: P-1 pontoonDiagram: 1500 barrel p-series fuel barge


HURL Artifact No. SBB-14 *Denotes approximations and speculations
Name: Unknown Lost: Unknown
Artifact Type: Navy Lighterage Found: 10-Aug-09
Nationality: USA Dive No: PIV-207
Class or Make: P-Series Pontoon Location: Kewalo
Model: 18 x 6 Stringer Depth (m): 348m
Purpose: Dock, Wharf, Fuel Storage, Freight Barge or Bridge HURL crew: Kerby, Kelley
Serial Number: Unknown Additional Dives:
Built/Launched: After 1942
Length: 100'
Width: 45'
Height: 5'
Circumstance of Loss: Unknown Crew Personnel/Position: n/a
Reason of Loss: Unknown Crew Survivals/Fatalities: n/a
Artifact History: Unknown

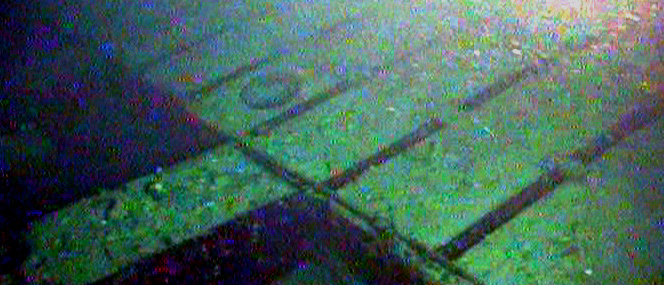

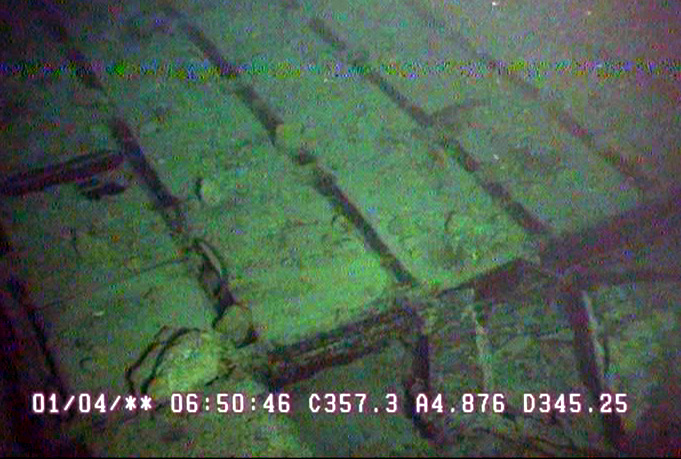

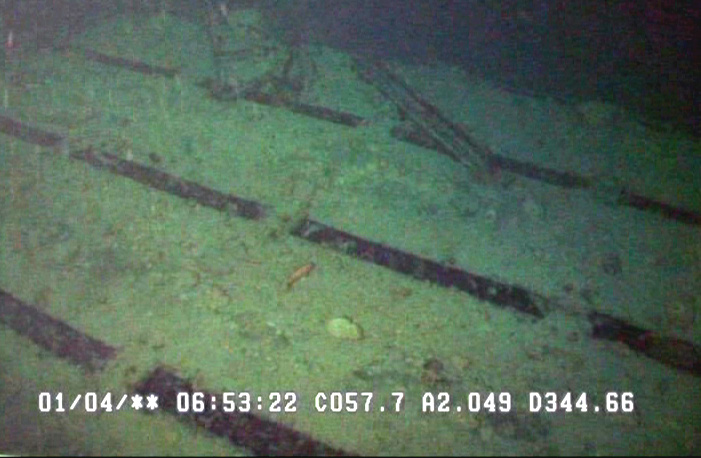

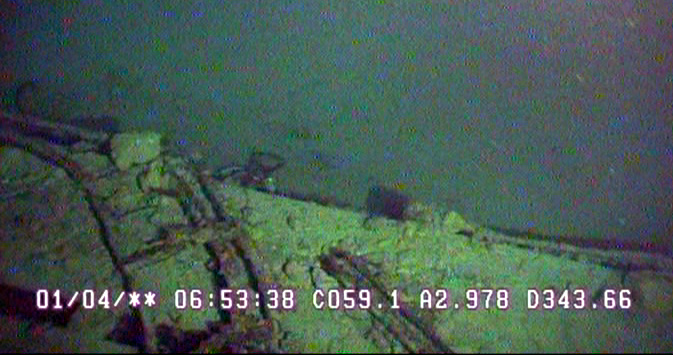

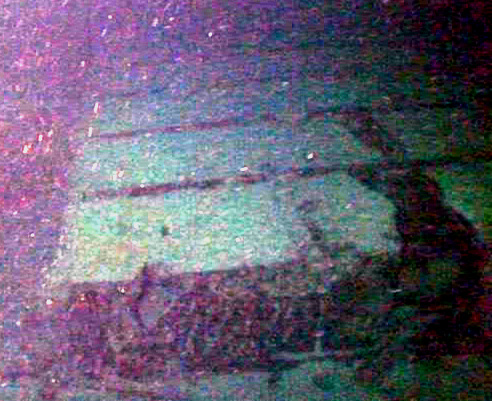

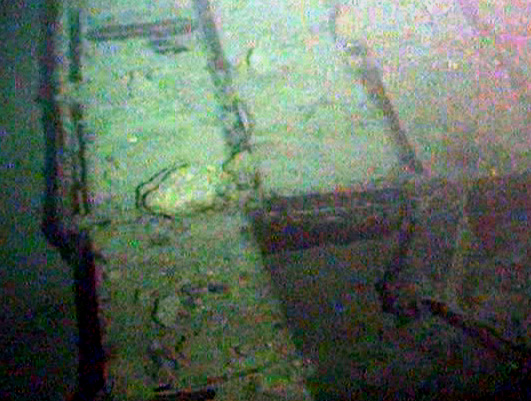

Artifact Condition: The lighterage is made up of a series of steel rectangular cells connected together. It is 18 rows long and 6 sections wide. There is a long open access port near one corner. A few of the cells have broken loose, most likely from impact with the seabed. Some of the cells have holes in them. There are a couple tires and some mangled siding lying about.
Additional Information: There were 5 types of P-Series pontoons in various shapes for use in 7 different barge or causeway configurations. The 18 x 6 type barge is the 2nd largest and is made up of P-1 cubicle shaped pontoons which were the most common type. They were 5' x 7' x 5' and 3/16" thick. Propulsion could be added making a lighter that was capable of up to 250 tons or accessories could be added to convert it to a 1500 barrel capacity fuel storage barge. Add hinges and it could be a wharf for outfitting or repair. They were first developed in WW II and used through Korea & Viet Nam. It is being used extensively as a habitat by fish and eels.
