LC-37: LCM-6 Maxine

Survey: Mike boat landing craftSurvey: Mike boat landing craftSurvey: Mike boat landing craftSurvey: Mike boat landing craftSurvey: Mike boat landing craftSurvey: Mike boat landing craftSurvey: Mike boat landing craftSurvey: Mike boat landing craftSurvey: Mike boat landing craftSurvey: Mike boat landing craftSurvey: Mike boat landing craftSurvey: Mike boat landing craftSurvey: Mike boat landing craftSurvey: Mike boat landing craftSurvey: Mike boat landing craftSurvey: Mike boat landing craftSurvey: Mike boat landing craftSurvey: Mike boat landing craftSurvey: Mike boat landing craftSurvey: Mike boat landing craftSurvey: Mike boat landing craft


HURL Artifact No. LC-37 *Denotes approximations and speculations
Name: LCM-6 Maxine Lost: Unknown
Artifact Type: Landing Craft, Mechanized Found: 27-Jul-16
Nationality: USA Dive No: PIV-290/PV-850
Class or Make: LCM Location: Barber's Point
Model: *Mark 3 Depth (m): 652m
Purpose: Land motor vehicles or 1 tank HURL crew: Kerby, Rubin/Cremer, Reed
Serial Number: Unknown Additional Dives:
Built/Launched: *Higgins pre-1959 (8,631)
Length: 50'
Width: 14'
Height: 9'
Circumstance of Loss: Intentionally Disposed Crew Personnel/Position: Coxswain, Engineer, & 2 Crew
Reason of Loss: *Redundant Crew Survivals/Fatalities: n/a
Artifact History: Unknown

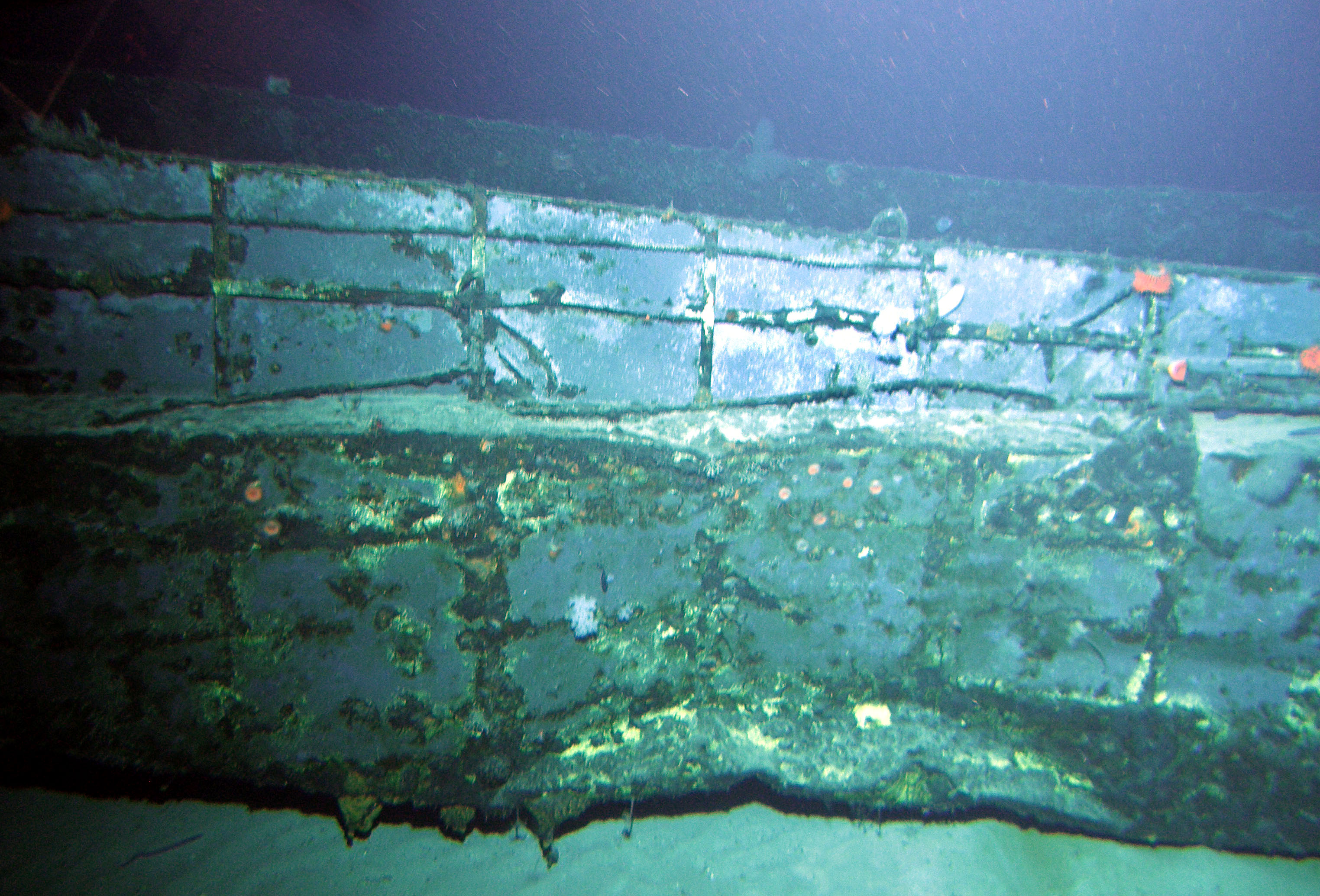

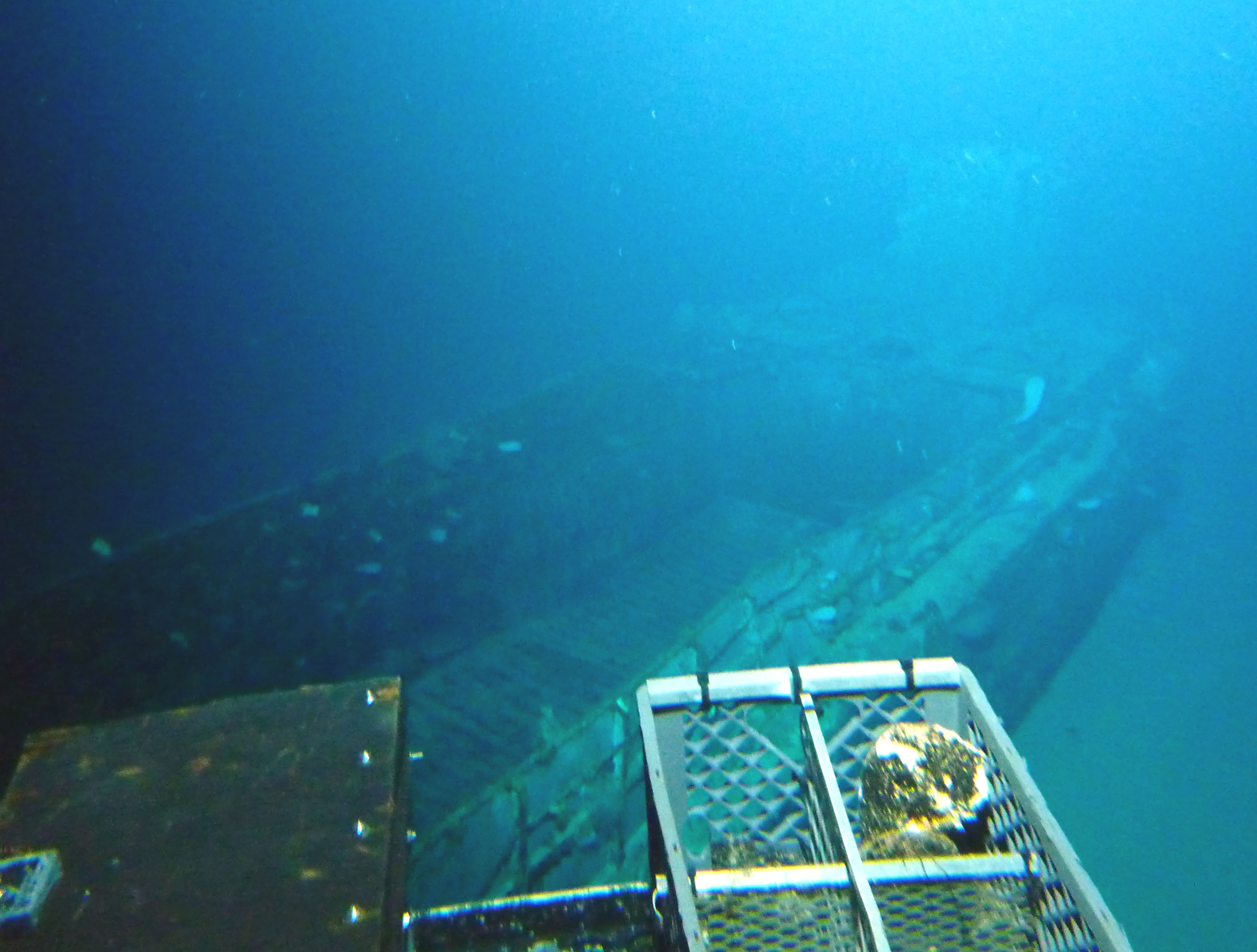

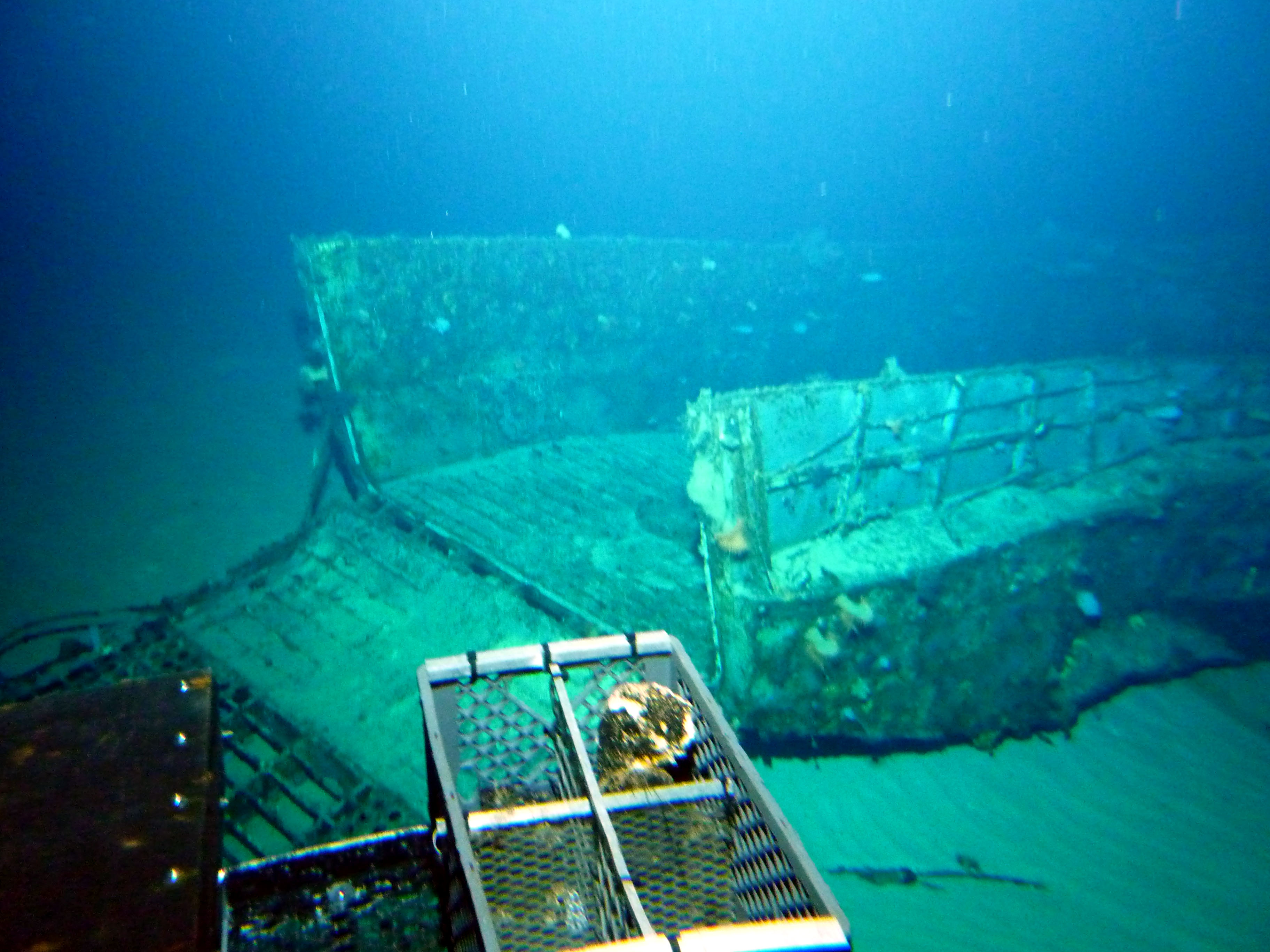

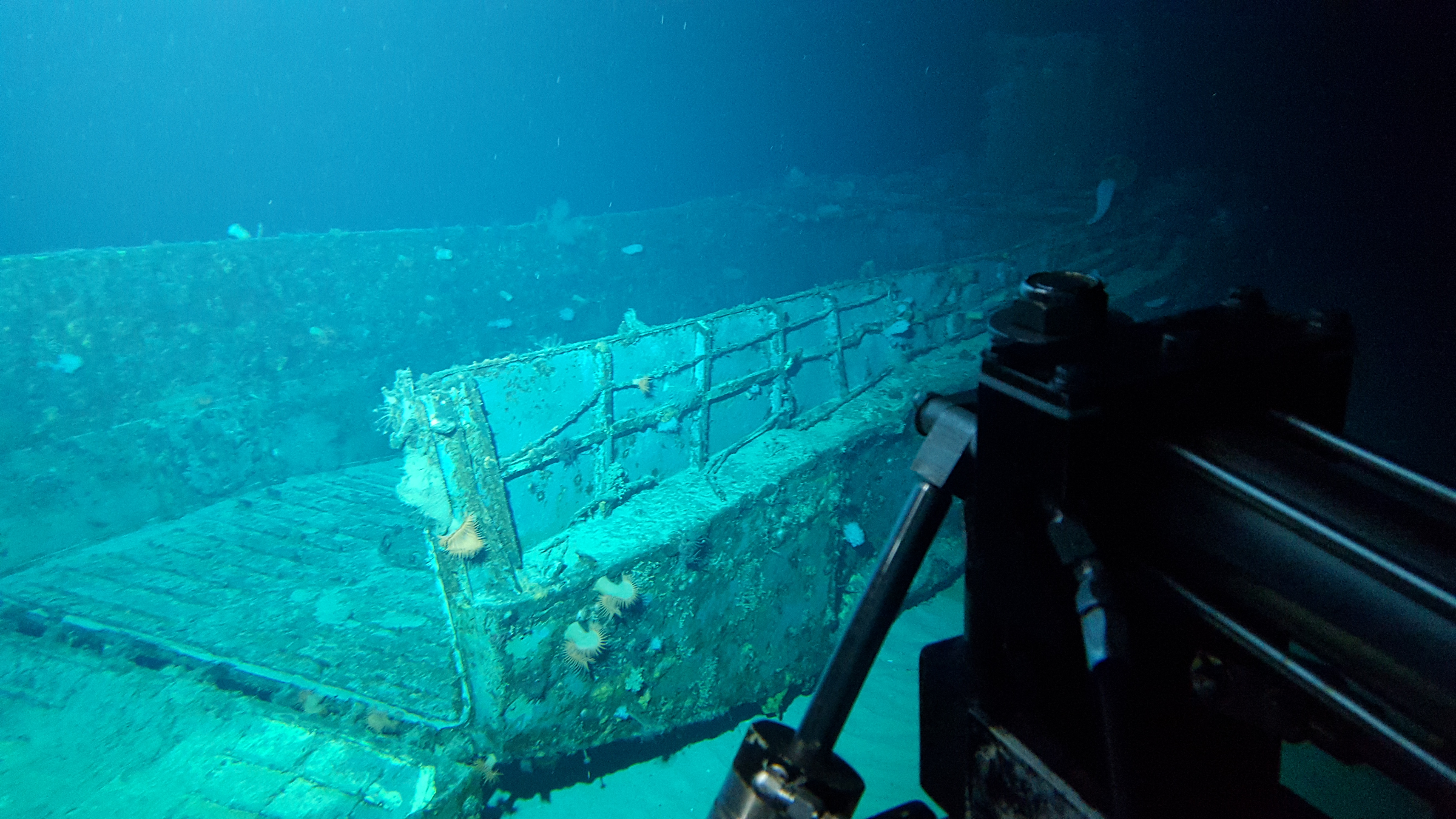

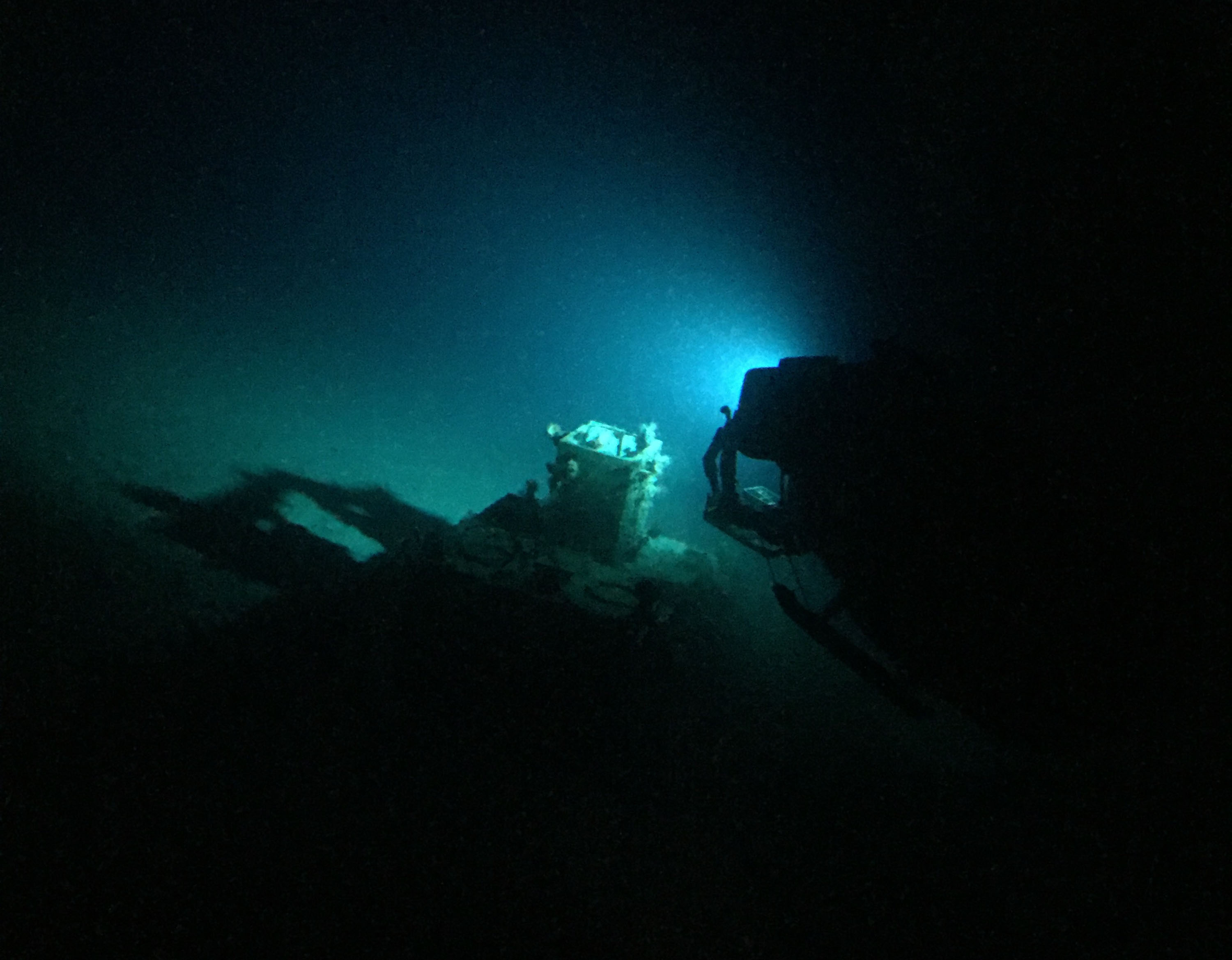

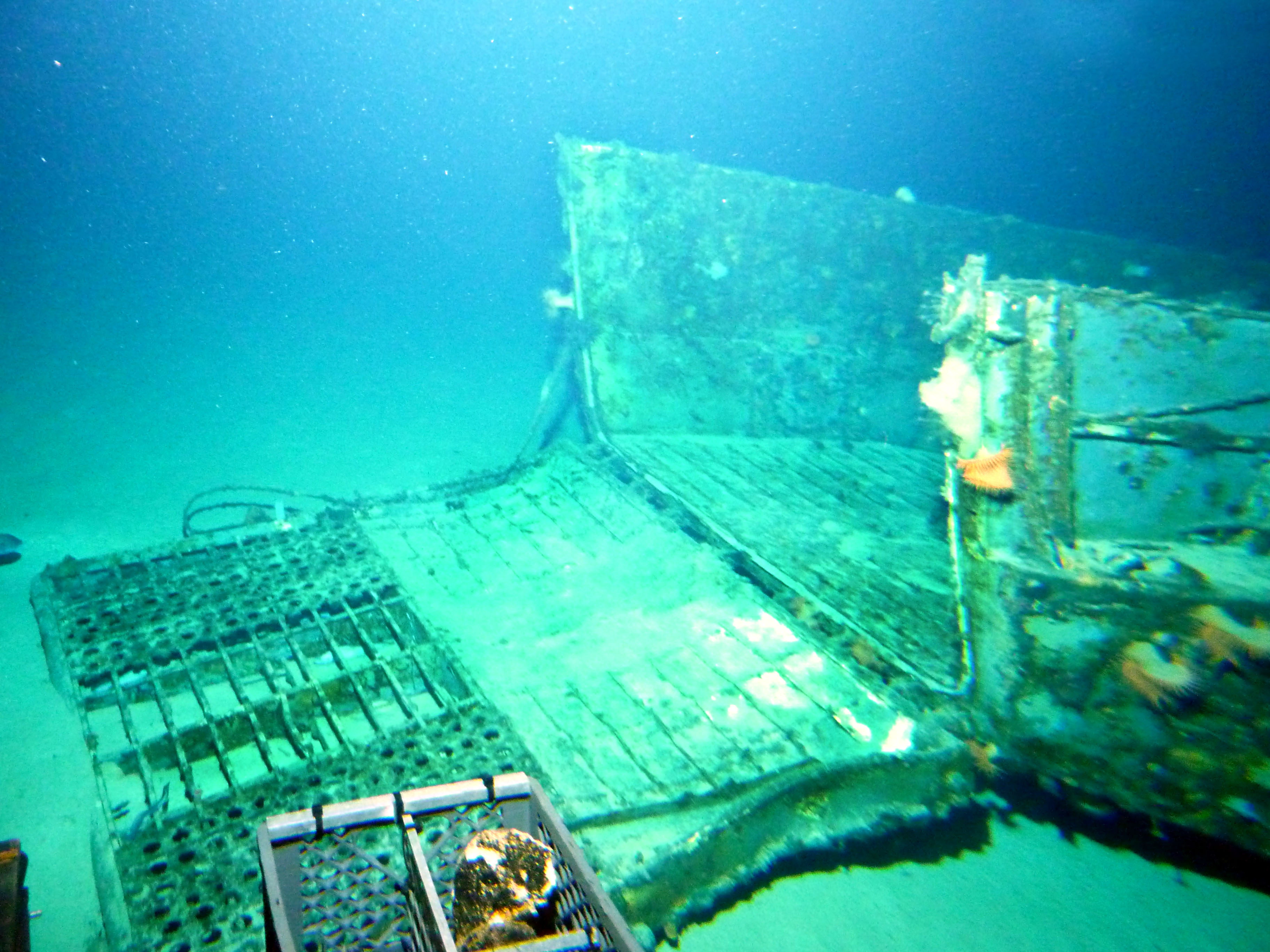

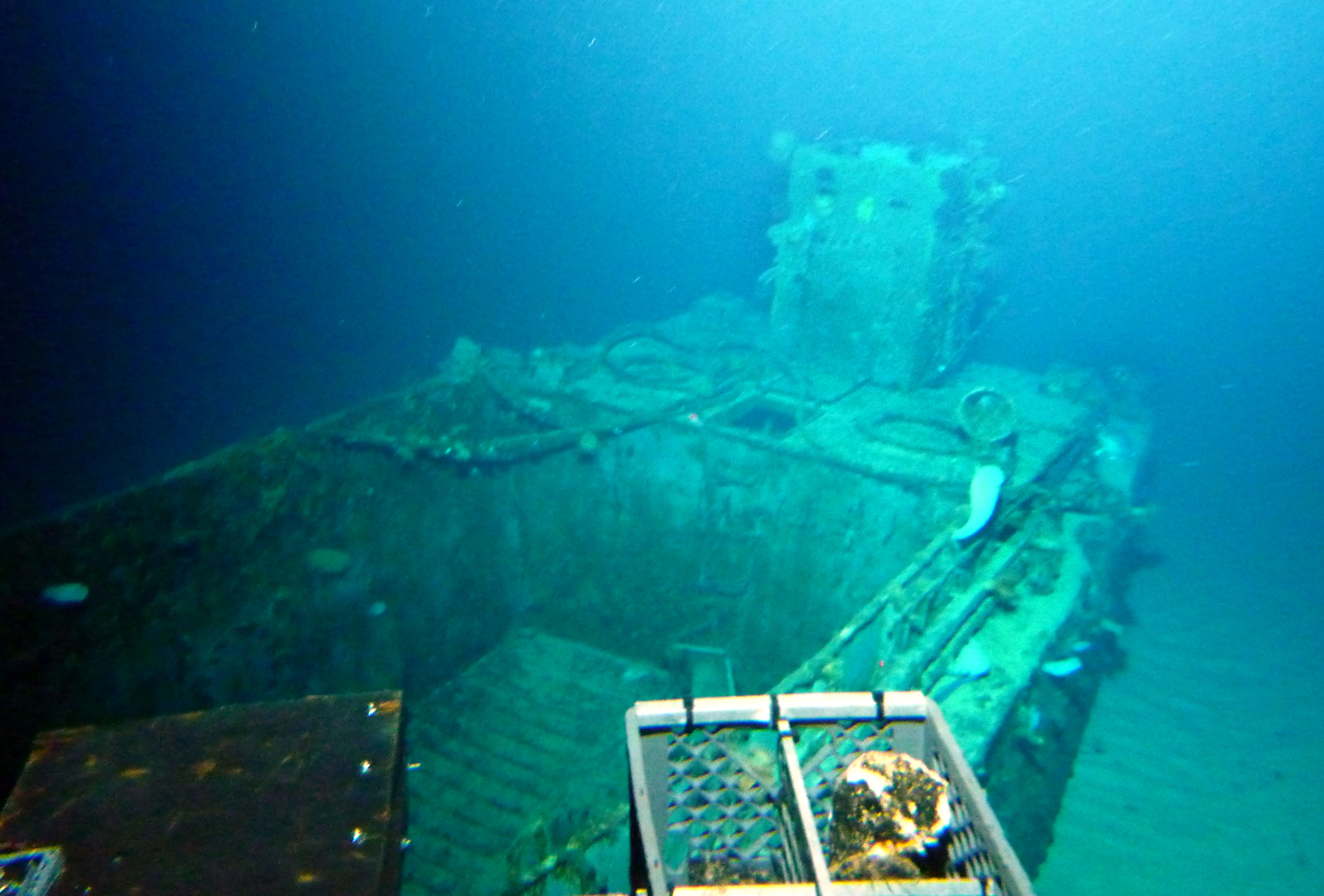

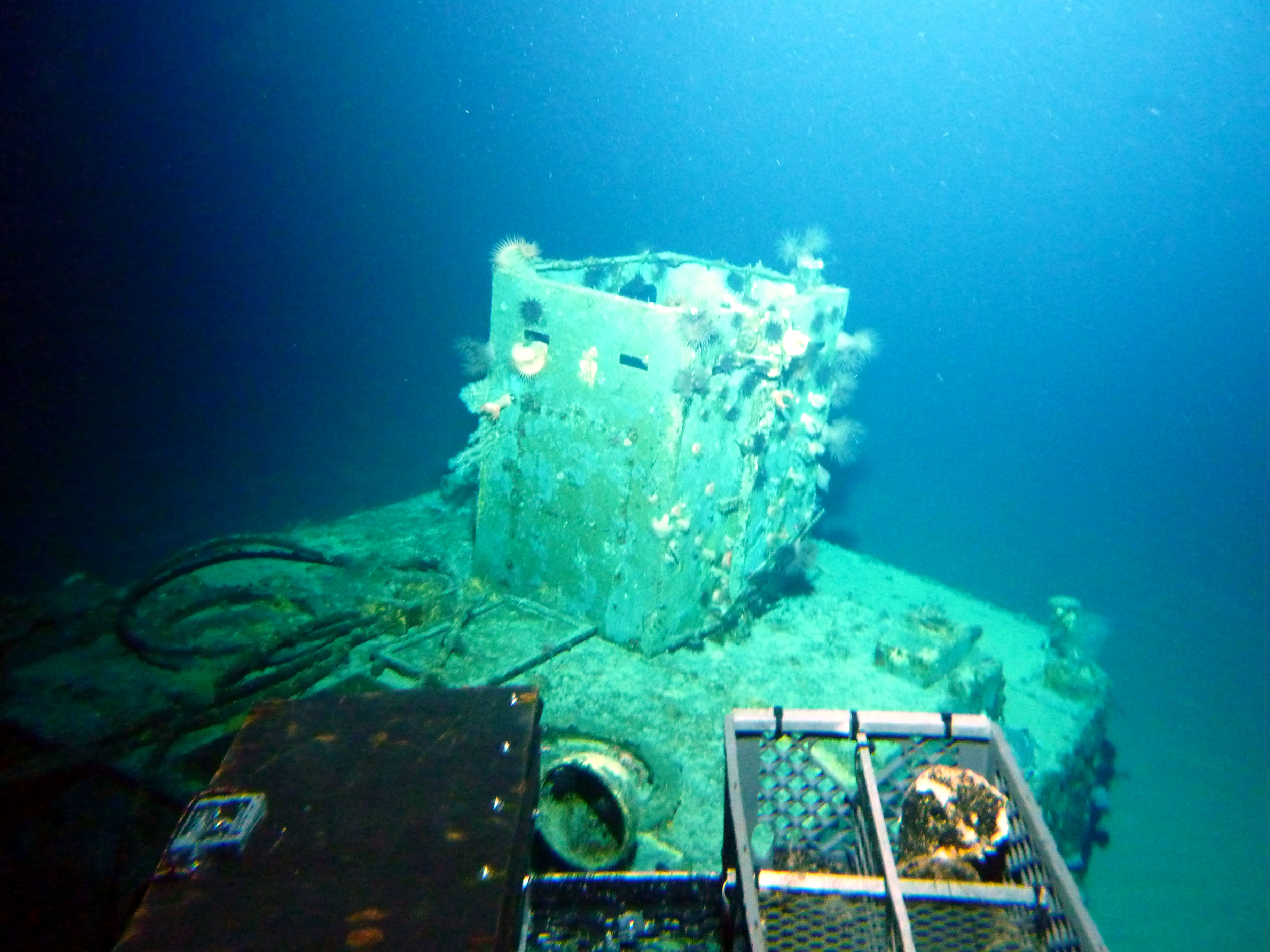

Artifact Condition: Vessel is in excellent condition. It is fully intact with the pilots station still in place and no sign of any hull decay. The drop gate is down and whole. Lettering can be seen on the side of the pilot's station and reads something similar to "Maxine", but it is difficult to be certain on several letters. The stern of the vessel was not inspected.
Additional Information: LCM-3's are 50' in length. LCM-6's are largely identical except 56' in length. This vessel appears to be closer to 50' and would be more likely from the earlier WW II era boats like most of the artifacts in this area. The Mk II was 45'. Only 147 were built. There were two manufacturers of the LCM-3's. Higgins made the majority of them.
