(1) How to make a multi-element color map (so-called "Sasha maps")

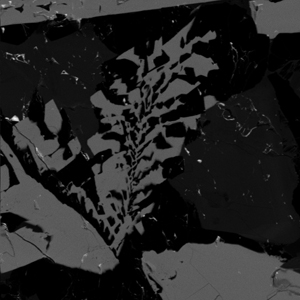

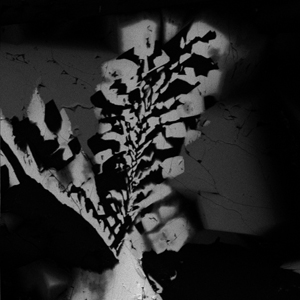

Aluminum-X-ray map Aluminum magnesium X-ray mapMagnesium

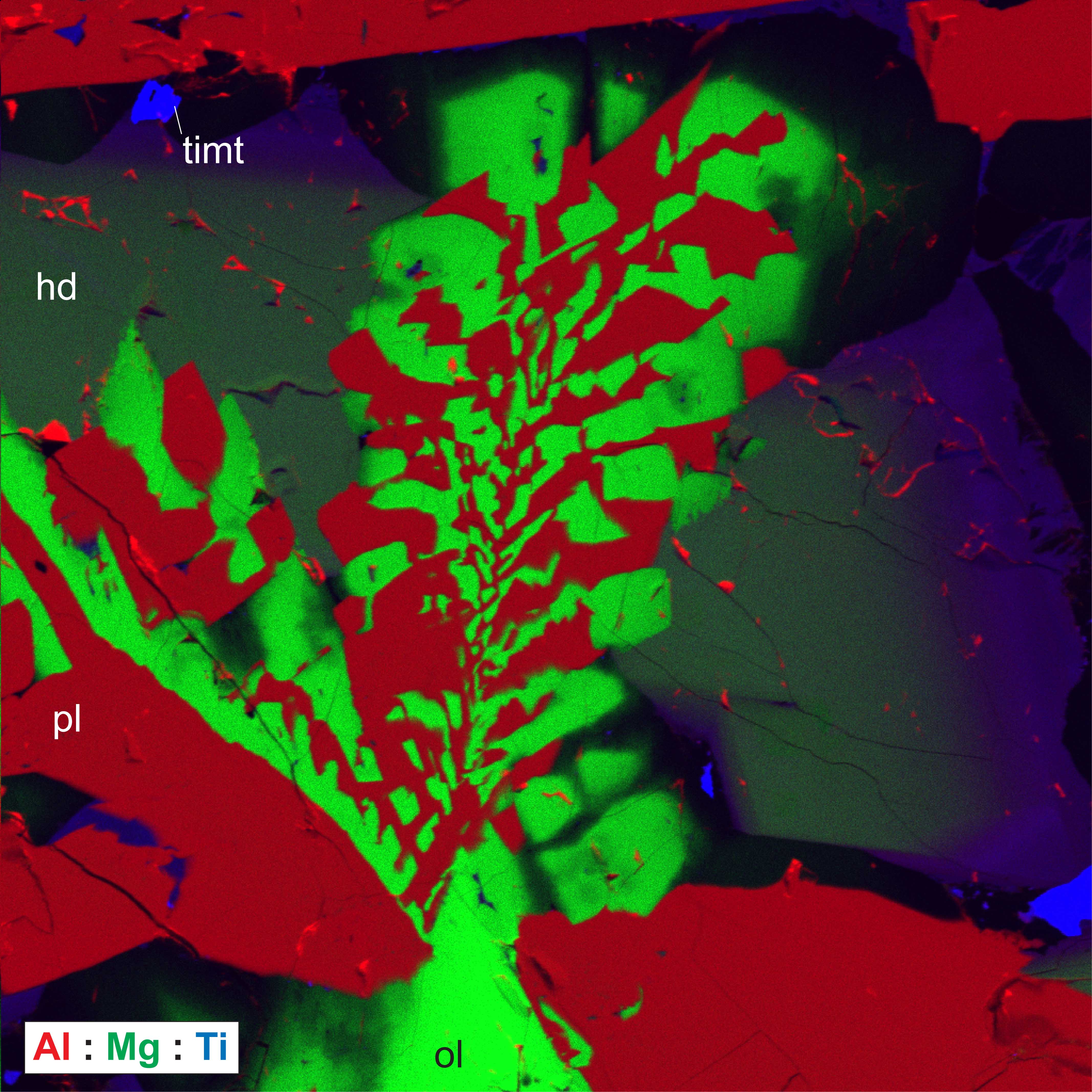

titanium X-ray mapTitanium RGB image combining aluminum, magnesium and titatium x-ray signalsThree-channel RGB map

- Open all greyscale maps in Photoshop (or equivalent software)
- Select and copy the first one
- Create new Image (with identical dimensions) in RGB mode
- Click on "Channels" and select R, G, or B
- Paste greyscale image into the chosen channel
- Repeat for other greyscale maps
